Rainwater Outlets & Downspouts
Finish rainwater pipes neatly at façades, parapets and podiums. The FLOZN stainless steel flap-type outlet closes against wind and pests, while the polished nickel bronze downspout makes a feature of the discharge point.

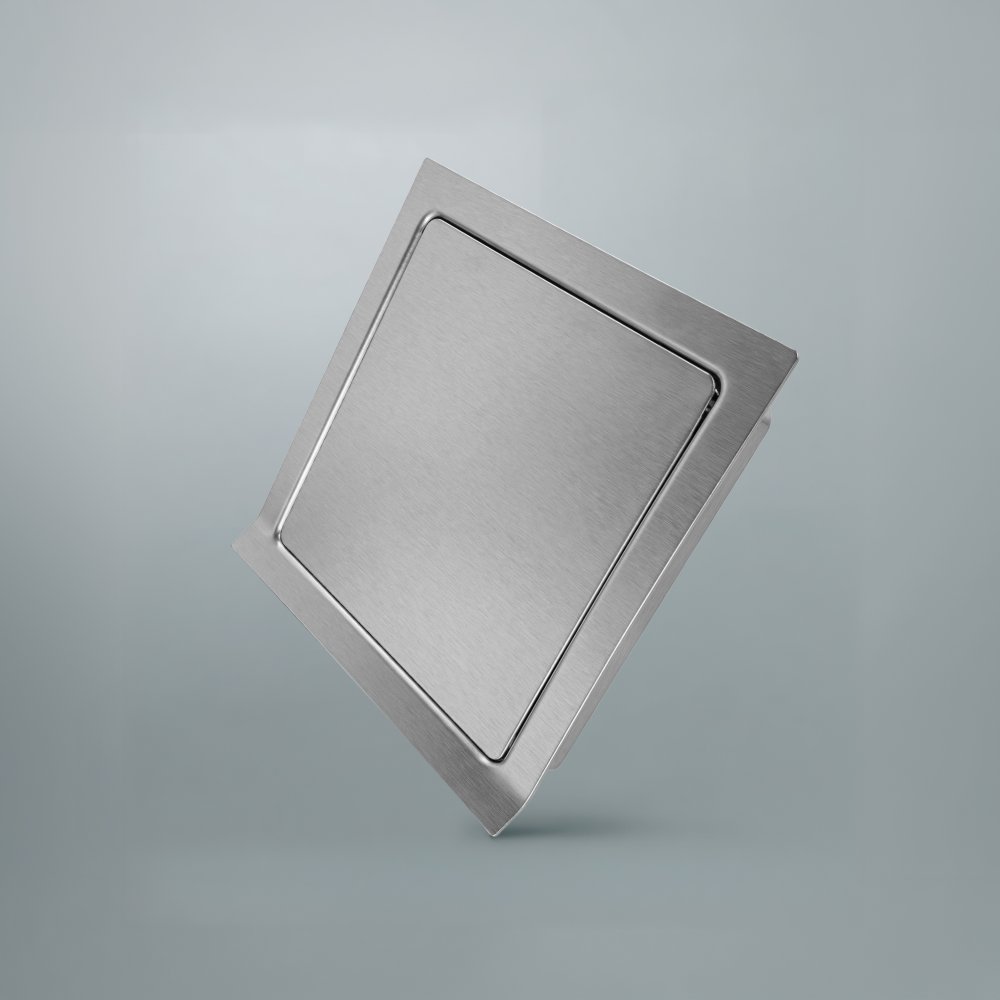

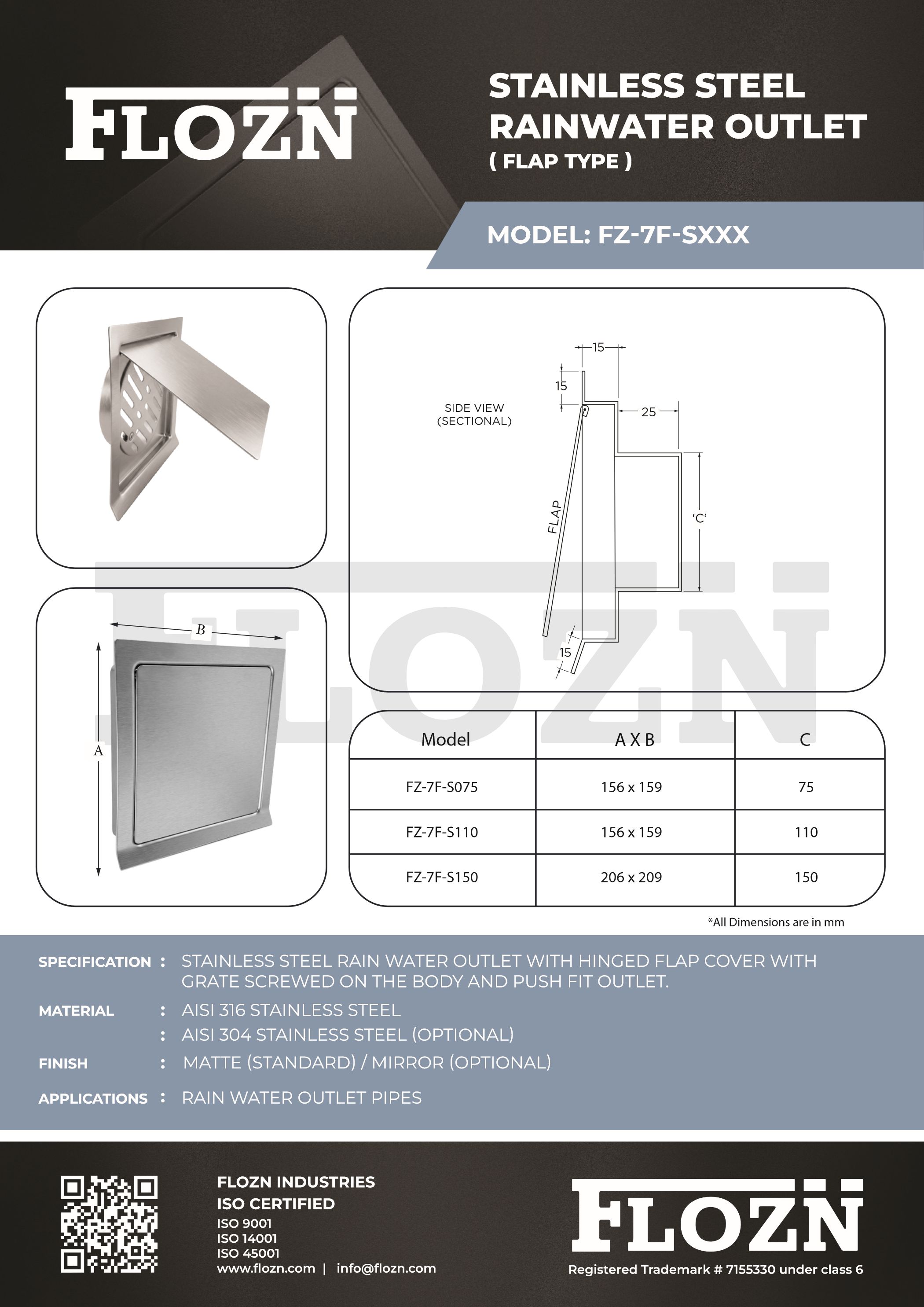

Stainless Steel Rainwater Outlet – Flap Type
Stainless steel rainwater outlet with hinged flap cover, grate screwed on the body and push-fit outlet.
- Material
- AISI 316 stainless steel (AISI 304 optional)
- Finish
- Matte (standard) / Mirror (optional)
- Features
- Hinged flap cover with screwed grate
- Applications
- Rainwater outlet pipes, parapets & façades
| Model | A x B | C (outlet) |
|---|---|---|
| FZ-7F-S075 | 156 x 159 | 75 |
| FZ-7F-S110 | 156 x 159 | 110 |
| FZ-7F-S150 | 206 x 209 | 150 |
All dimensions in mm. Other sizes and finishes on request.

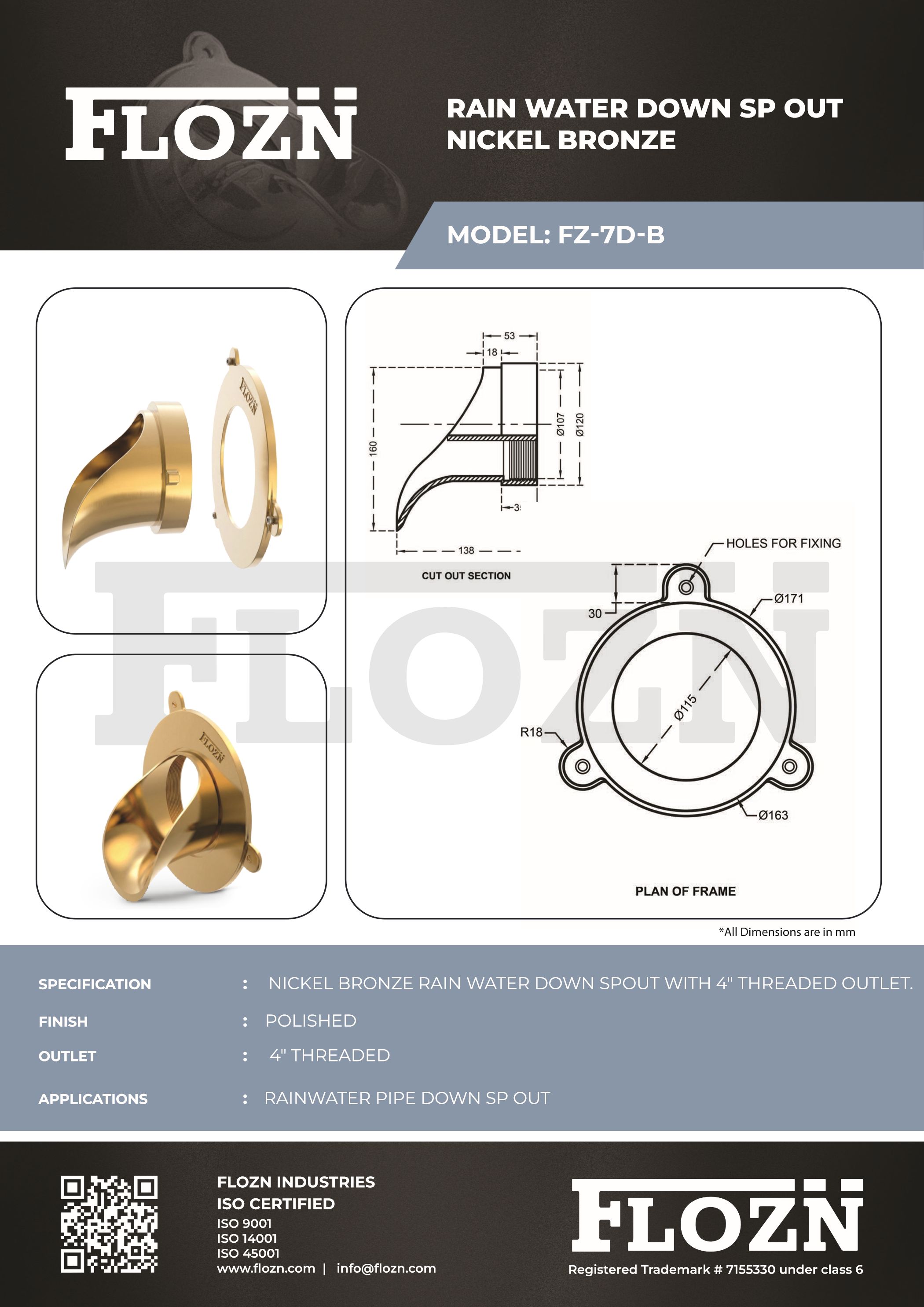

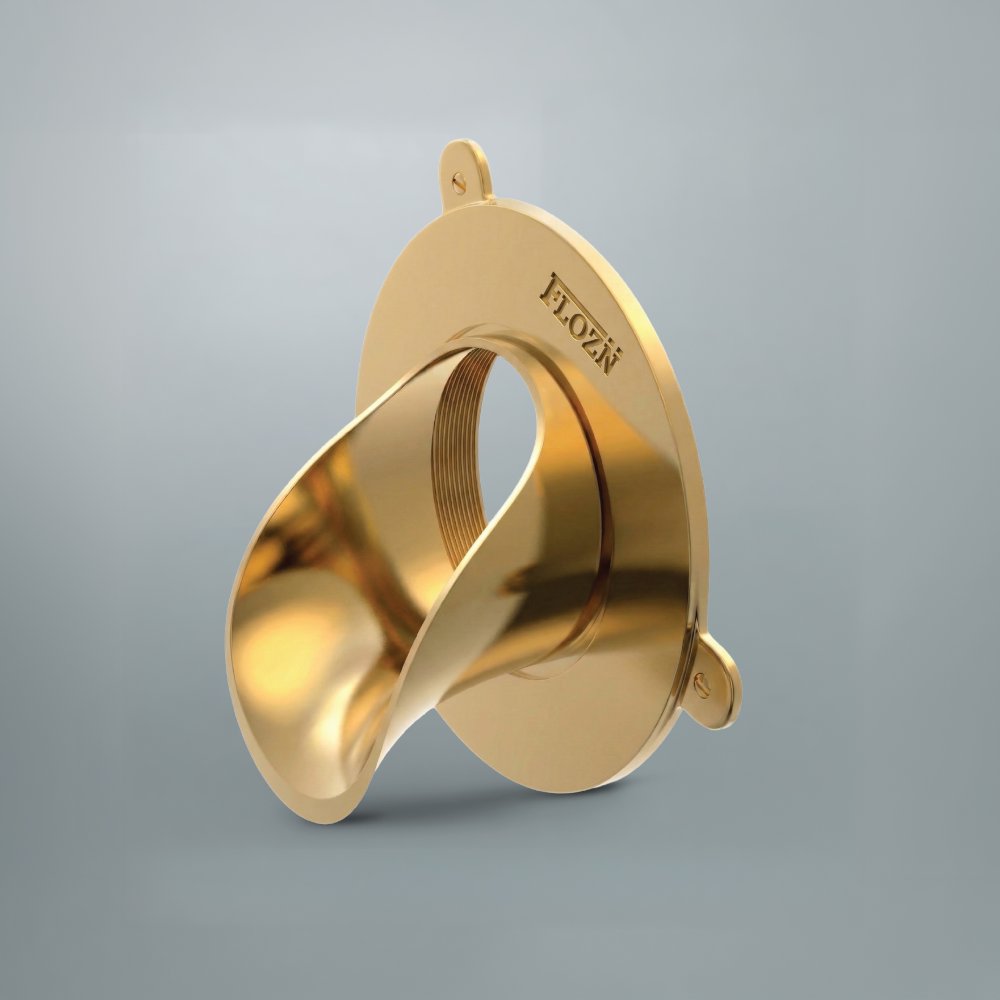

Rainwater Downspout – Nickel Bronze
Nickel bronze rainwater downspout (spout outlet) with 4" threaded outlet.
- Material
- Nickel bronze
- Finish
- Polished
- Features
- 4" threaded outlet; wall frame with fixing holes
- Applications
- Rainwater pipe discharge at façades, podiums & landscape
| Model | Frame Ø | Opening Ø | Projection | Height | Thread Ø |
|---|---|---|---|---|---|
| FZ-7D-B | 171 | 115 | 138 | 160 | 107 / 120 |
All dimensions in mm. Other sizes and finishes on request.
Engineered drainage you can specify with confidence
Frequently asked questions
What sizes are available for the stainless steel rainwater outlet?
FZ-7F-S075, FZ-7F-S110 and FZ-7F-S150 suit 75, 110 and 150 mm pipes.
What is the flap for?
The hinged flap cover closes when there is no flow, keeping out wind, debris, birds and insects.
Which finish does the downspout have?
FZ-7D-B is polished nickel bronze with a 4" threaded outlet.
