Stainless Steel Floor Drains & Cleanouts
FLOZN stainless steel floor drains and cleanouts are made from AISI 316 marine-grade stainless steel (AISI 304 optional) for bathrooms, kitchens, balconies and every finished floor where hygiene and appearance matter. Made in India and supplied worldwide – see where to buy; in the UAE they are available from Alphatek – see floor drains in Dubai.
Choose from screwed-grate drains with lid, two-piece grating sets, tile-insert recessed drains, trap drains, hinged-cover drains and watertight cleanouts – all with push-fit outlets and sizes from 80 x 80 mm to 200 x 200 mm.

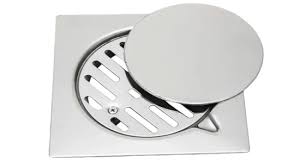

Stainless Steel Floor Drain with Lid
Square floor drain with screwed stainless steel grate & frame, with lid and push-fit outlet.
- Material
- AISI 316 stainless steel (AISI 304 optional)
- Finish
- Mirror (standard) / Matte (optional)
- Features
- L-screwed grate
- Applications
- Finished areas, bathrooms, kitchens & tiled areas
| Model | A | B | C | D | E |
|---|---|---|---|---|---|
| FZ-2L-S200 | 200 x 200 | 170 | 165 | 25 | 150 |
| FZ-2L-S150 | 150 x 150 | 114 | 111 | 18 | 102 |
| FZ-2L-S125 | 125 x 125 | 114 | 111 | 18 | 102 |
| FZ-2L-S100 | 100 x 100 | 75 | 70 | 15 | 50 |
| FZ-2L-S080 | 80 x 80 | 75 | 70 | 15 | 50 |
All dimensions in mm. Other sizes and finishes on request.

Square Floor Grating – Stainless Steel
Stainless steel square floor drain with screwed round grate and push-fit outlet.
- Material
- AISI 316 stainless steel (AISI 304 optional)
- Finish
- Matte (standard) / Mirror (optional)
- Features
- Two-piece grate & frame set
- Applications
- Finished areas, bathrooms, kitchens & tiled areas
| Model | A | B | C | D |
|---|---|---|---|---|
| FZ-2G-S200 | 200 x 200 | 165 | 150 | 25 |
| FZ-2G-S150 | 150 x 150 | 111 | 102 | 18 |
| FZ-2G-S125 | 125 x 125 | 111 | 102 | 18 |
| FZ-2G-S100 | 100 x 100 | 70 | 50 | 15 |
| FZ-2G-S080 | 80 x 80 | 70 | 50 | 15 |
All dimensions in mm. Other sizes and finishes on request.

Recessed Floor Drain – Tile Insert (Leg Type)
Square tile-insert floor drain with push-fit outlet; stainless steel body with drop-in tile insert tray.
- Material
- SS 316 (SS 304 optional)
- Finish
- Matte
- Features
- Recessed / tile insert
- Applications
- Finished areas, bathrooms, balconies, kitchens & tiled areas
| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| FZ-2R-S200-L | 200 x 200 | 185 | 34 | 150 | 5 | 12 |
| FZ-2R-S150-L | 150 x 150 | 135 | 34 | 102 | 5 | 12 |
| FZ-2R-S125-L | 125 x 125 | 110 | 34 | 102 | 5 | 12 |
| FZ-2R-S100-L | 100 x 100 | 85 | 34 | 50 | 5 | 12 |
| FZ-2R-S080-L | 80 x 80 | 65 | 34 | 50 | 5 | 12 |
All dimensions in mm. Other sizes and finishes on request.

Recessed Floor Drain – Tile Insert (Dimple Type)
Stainless steel square recessed floor drain with push-fit outlet.
- Material
- AISI 316 stainless steel (AISI 304 optional)
- Finish
- Matte (standard)
- Features
- Recessed / tile insert. Accessories: odour trap (optional), key
- Applications
- Finished areas, bathrooms, kitchens & tiled areas
| Model | A | B | C | D | E |
|---|---|---|---|---|---|
| FZ-2R-S200-D | 200 | 138 | 30 | 102 | 14 |
| FZ-2R-S150-D | 150 | 114 | 30 | 102 | 14 |
| FZ-2R-S125-D | 125 | 90 | 30 | 102 | 14 |
All dimensions in mm. Other sizes and finishes on request.

Stainless Steel Floor Drain with Trap
Stainless steel trap floor drain with push-fit outlet; stainless steel body with secured grating & secured bell trap with drop-in cover.
- Material
- AISI 316 stainless steel (AISI 304 optional)
- Finish
- Matte (standard) / Mirror (optional)
- Features
- Screwed grate with bell trap
- Applications
- Bathrooms & balconies
| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| FZ-2L-S200-T | 200 x 200 | 145 | 165 | 50 | 50 | 75 |
| FZ-2L-S150-T | 150 x 150 | 102 | 111 | 50 | 102 | 50 |
| FZ-2L-S125-T | 125 x 125 | 102 | 111 | 50 | 102 | 50 |
| FZ-2L-S100-T | 100 x 100 | 64 | 70 | 50 | 50 | 38 |
| FZ-2L-S080-T | 80 x 80 | 64 | 70 | 50 | 50 | 38 |
All dimensions in mm. Other sizes and finishes on request.

Hinged Floor Drain Cover – Stainless Steel
Stainless steel floor drain with grate & hinged cover and PVC push-fit outlet.
- Material
- AISI 316 stainless steel (AISI 304 optional)
- Finish
- Matte
- Features
- Hinged cover with inner screwed grate; UPVC 102 mm O/D outlet
- Applications
- Finished areas, bathrooms & kitchens
| Model | Size | Outlet O/D |
|---|---|---|
| FZ-2LH-S150 | 150 x 150 | 102 |
All dimensions in mm. Other sizes and finishes on request.

Stainless Steel Floor Cleanout
Stainless steel square cleanout with watertight gasket and screwed stainless steel cover plate.
- Material
- AISI 316 stainless steel (AISI 304 optional)
- Finish
- Mirror (standard) / Matte (optional)
- Features
- Watertight gasket, screwed cover
- Applications
- Finished areas, bathrooms, kitchens & tiled areas
| Model | A | B | C | D |
|---|---|---|---|---|
| FZ-3G-S150 | 150 x 150 | 114 | 102 | 18 |
All dimensions in mm. Other sizes and finishes on request.

Recessed Cleanout – Stainless Steel
Recessed, airtight floor cleanout with push-fit outlet; stainless steel body with screwed tile insert tray.
- Material
- SS 316 (SS 304 optional)
- Finish
- Matte
- Features
- Recessed / tile insert, airtight gasket
- Applications
- Finished areas, bathrooms, balconies, kitchens & tiled areas
| Model | A | B | C | D |
|---|---|---|---|---|
| FZ-3R-S150 | 150 x 150 | 28 | 24 | 102 |
All dimensions in mm. Other sizes and finishes on request.
Engineered drainage you can specify with confidence
Frequently asked questions
Which stainless steel grade do FLOZN floor drains use?
All FLOZN stainless steel floor drains and cleanouts are made in AISI 316 marine-grade stainless steel as standard. AISI 304 is available as an option.
What sizes are available?
Square tops are available in 80 x 80, 100 x 100, 125 x 125, 150 x 150 and 200 x 200 mm, depending on the model. Full dimension tables are shown on each product.
What is a tile-insert (recessed) floor drain?
A tile-insert drain has a stainless steel tray that takes the same floor tile as the room, so only a slim stainless frame is visible. FLOZN offers leg-type (FZ-2R-SXXX-L) and dimple-type (FZ-2R-SXXX-D) versions.
Do you supply floor drains with an odour trap?
Yes. FZ-2L-SXXX-T has a secured bell trap with drop-in cover, and an odour trap is optional on the recessed FZ-2R-SXXX-D drain.
Which finishes are available?
Mirror or matte finish depending on the model – see the finish line on each product. Other finishes are available on request.
Do you have a recessed stainless steel cleanout cover?
Yes. FZ-3R-S150 is a recessed, airtight floor cleanout with a 150 x 150 mm top, a screwed tile-insert tray and a push-fit outlet, in SS 316 (SS 304 optional). It suits bathrooms, balconies, kitchens and other tiled areas. Other sizes and finishes are available on request.
Need a datasheet, sample or quotation?
Send your project details, model codes and quantities to info@flozn.com and our team will reply with technical submittals and pricing.
